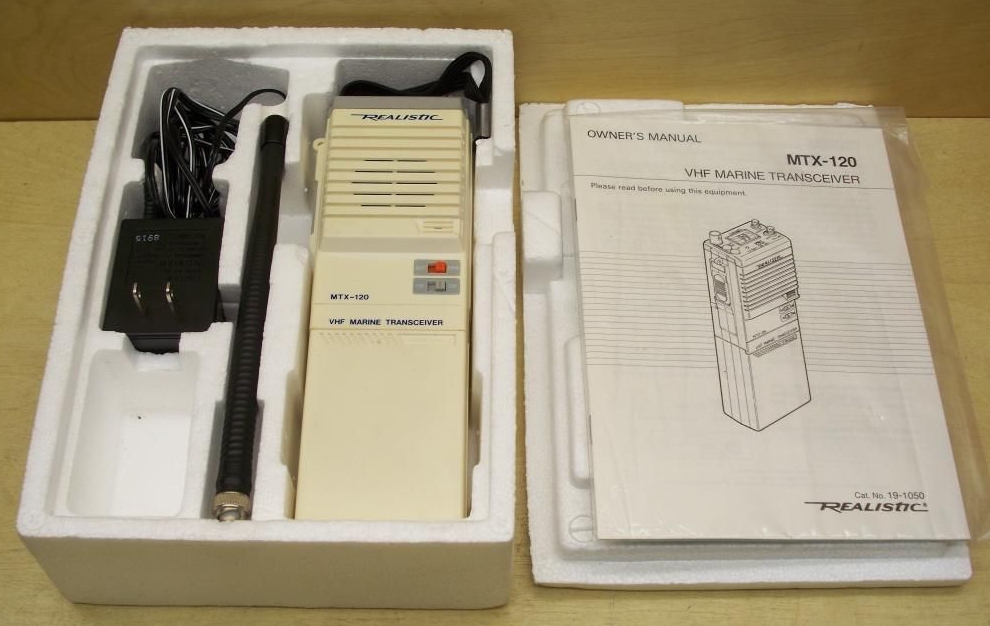

Realistic MTX-120 {USA Catalog Number: 19-1050}*
| Type: |
Professional Marine Transceiver |
| Frequency Range: |
RX: 156.025-157.425 MHz
TX: 156.025-162.550 MHz |
| Modes: |
FM |
| Memories: |
RX: 90
(9 Weather Channels)
TX: 55 |
| RF Power Output: |
1W/5W |
| Voltage: |
11 VDC (700mAH Battery) |
| Current Drain: |
RX: 40 mA
TX: Max 200 mA |
| Aerial Input: |
50 ohms, BNC |
| Dimensions (W*H*D): |
46 x 210 x 35 mm |
| Weight: |
570g |
| Manufactured: |
Taiwan: 19xx-xxxx |
| Other: |
US & International Frequencies |
| Related Documents: |
Owner's Manual (6.2 MB) |
 |
